Getting Started

By the end of this guide you will have a broker to talk to, a set of MQTT client credentials, and a message published by one client and received by another — with the client session visible in the TBMQ UI.

Start by choosing where the broker runs:

For the components behind the broker and the path a message takes through them, see Architecture.

The fastest way to try TBMQ is the free public broker at demo.tbmq.io — a shared sandbox you can publish to right away.

Sign up for a free account to open the TBMQ UI and watch your own sessions, subscriptions, and broker statistics as you go.

This section covers the quickest path to your own broker: Docker on a single host. For every other option — Docker Compose cluster, Kubernetes, cloud, Helm — see Installation options.

• Docker installed and running.
• At least 2 GB of free RAM.

wget https://raw.githubusercontent.com/thingsboard/tbmq/release-2.4.0/msa/tbmq/configs/tbmq-install-and-run.sh &&
sudo chmod +x tbmq-install-and-run.sh && ./tbmq-install-and-run.sh

The script downloads docker-compose.yml into the current directory, creates the Docker volumes, installs the database, starts the broker, and then follows the container logs. Press Ctrl+C to stop following them — the broker keeps running in the background.

Open http://localhost:8083 and wait until the services are up. Log in with the default system administrator account:

TBMQ then prompts you to change this password. Set a new one, or click Skip to keep the default for now.

A new installation has Basic authentication enabled, while X.509, JWT, SCRAM, and HTTP authentication are switched off. So the broker refuses every client that does not match a stored credentials record — create one before you connect a client:

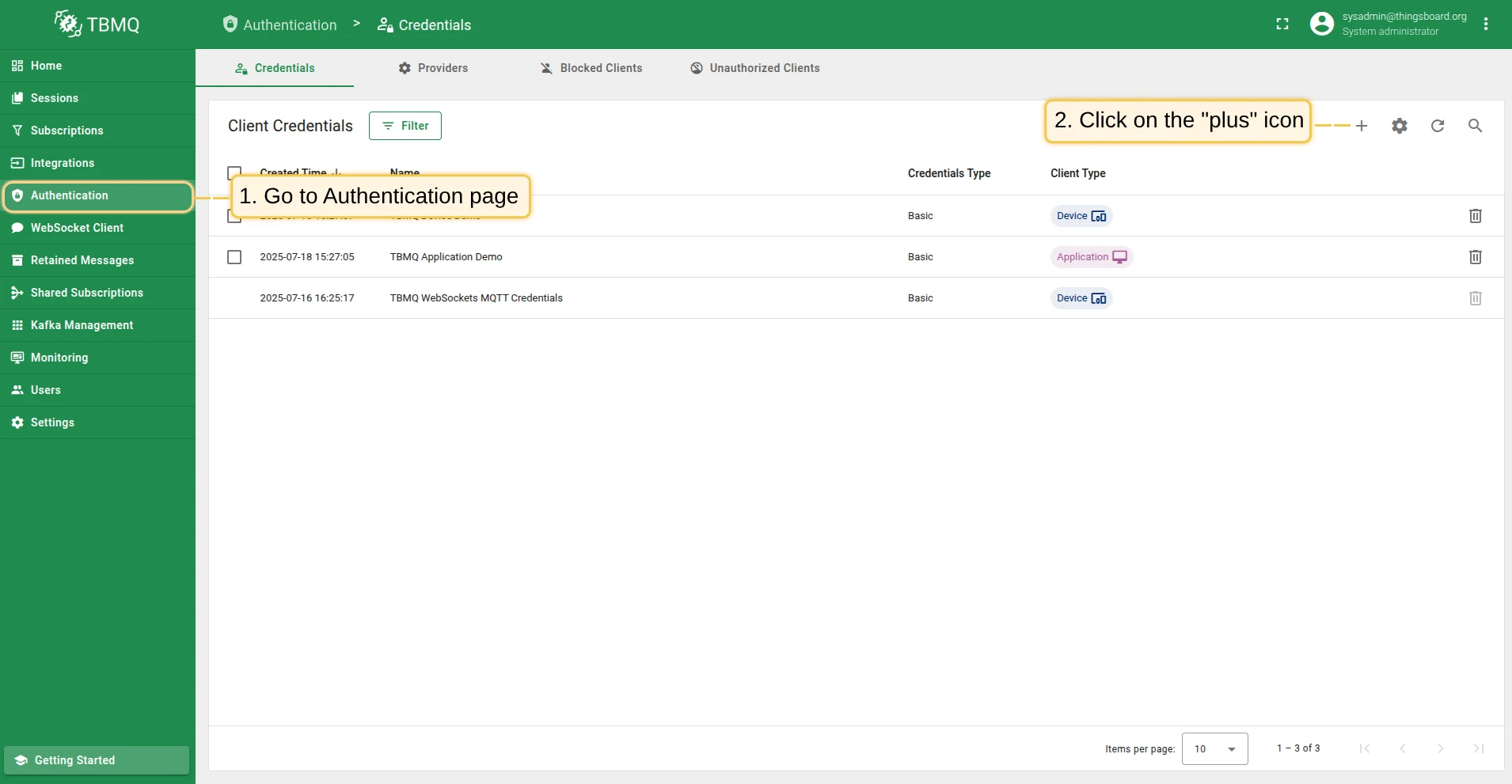

1. Open the credentials page.

   Go to Authentication → Credentials and click Add (+).

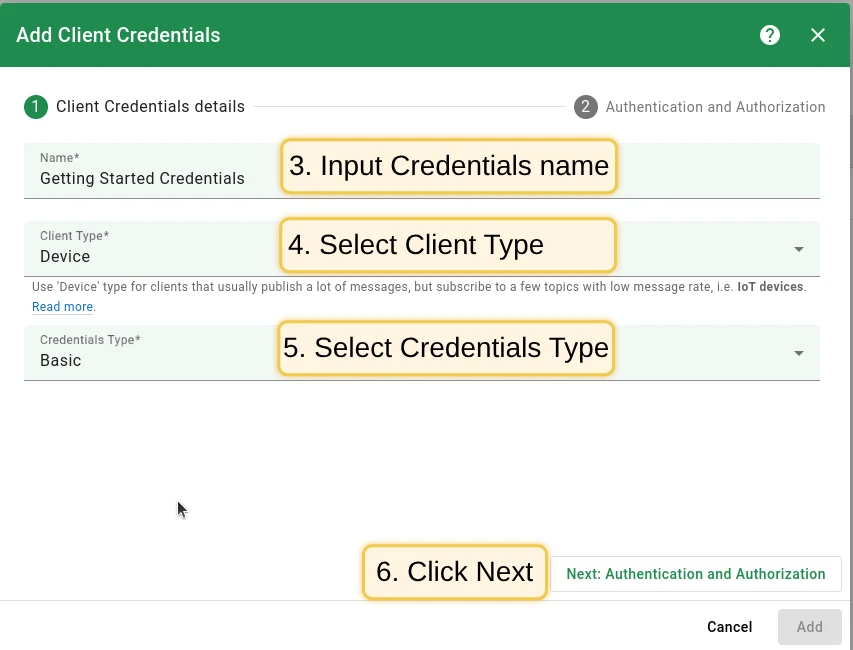

2. Name the credentials.

   For example, Getting Started Credentials.

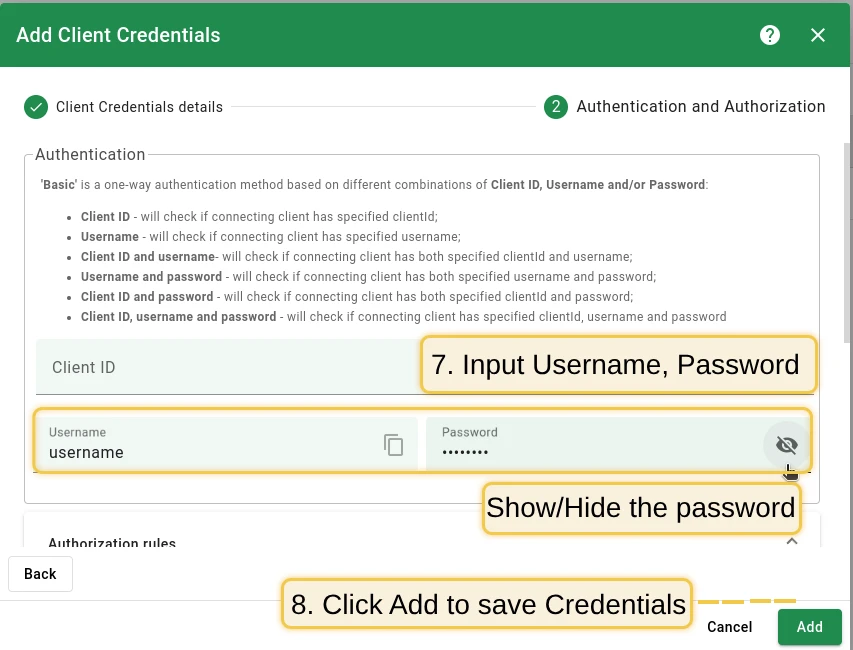

3. Set a username and password.

   Use values of your choice — this guide assumes username and password. Leave the authorization rules untouched: both the publish and the subscribe pattern default to .*, which permits any topic.

4. Save.

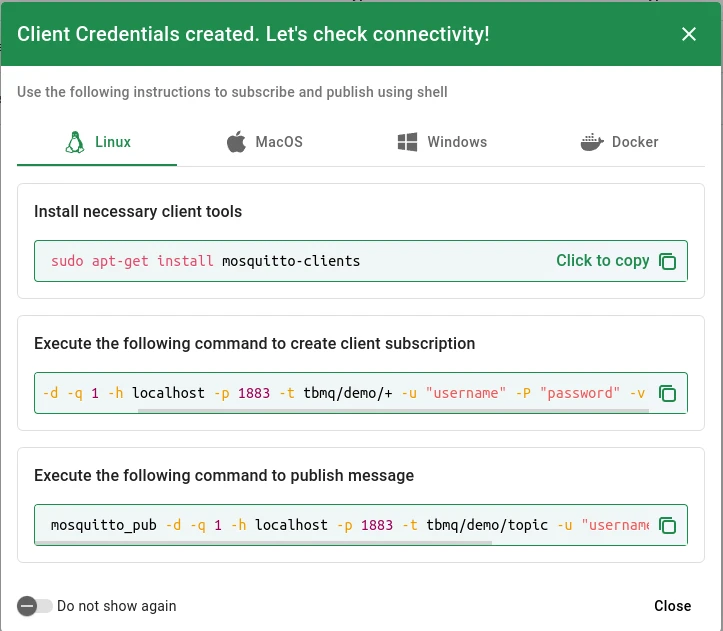

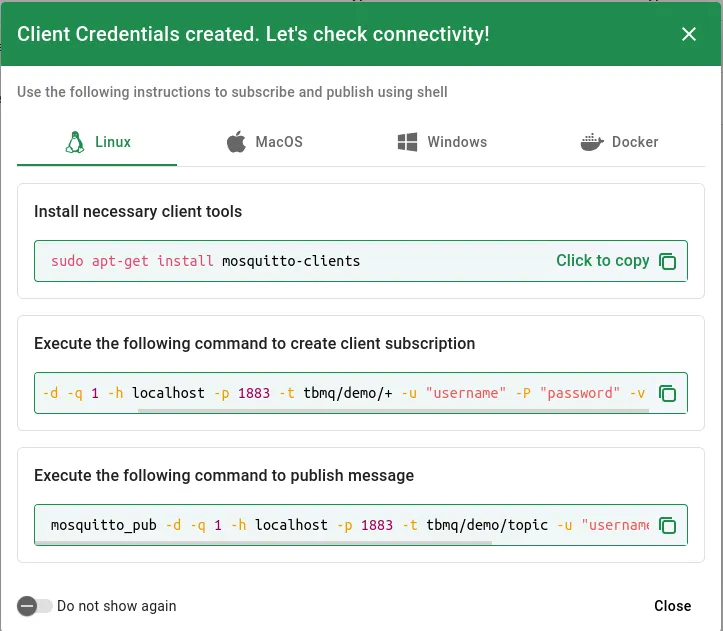

   Click Add. The Check connectivity dialog opens with ready-made mosquitto commands for the credentials you just created.

Go to Authentication → Credentials and click Add (+) Enter a credentials name, for example, "Getting Started Credentials" Enter username and password values of your choice. Click Add to save After adding the credentials, the Check Connectivity window opens with autogenerated commands for subscribing and publishing

To review which providers are active, open Authentication → Providers, or use the Broker Settings card on the Home page. For the other authentication methods and for transport security, see Security overview.

Now move a message through the broker. You can do it entirely in the browser with the built-in WebSocket client, or from a terminal with a command-line client.

A fresh installation already contains a WebSocket Default Connection that points at ws://localhost:8084/mqtt and carries one subscription to sensors/# with QoS 1 — enough to publish and receive without any setup:

1. Connect.

   Go to the WebSocket Client page and click Connect. The connection status changes to Connected.

2. Publish a message.

   In the message composer, set Topic to sensors/temperature, enter 32 as the payload, and click the Send icon.

3. Check the result.

   The message shows up twice in the Messages table: once as Published, and once as Received — delivered back to the same client through its sensors/# subscription.

For connection settings, subscription options, and MQTT 5 message properties, see WebSocket client.

The examples below use Mosquitto clients — see the mosquitto_sub and mosquitto_pub documentation for the full option list. Run each command in its own terminal, the subscriber first.

• Demo instance
• Local deployment

Subscribe to the sensors/temperature topic:

mosquitto_sub -d -h demo.tbmq.io -p 1883 -t sensors/temperature -q 1 -u demo

Publish a message to the same topic:

mosquitto_pub -d -h demo.tbmq.io -p 1883 -t sensors/temperature -m 32 -q 1 -u demo

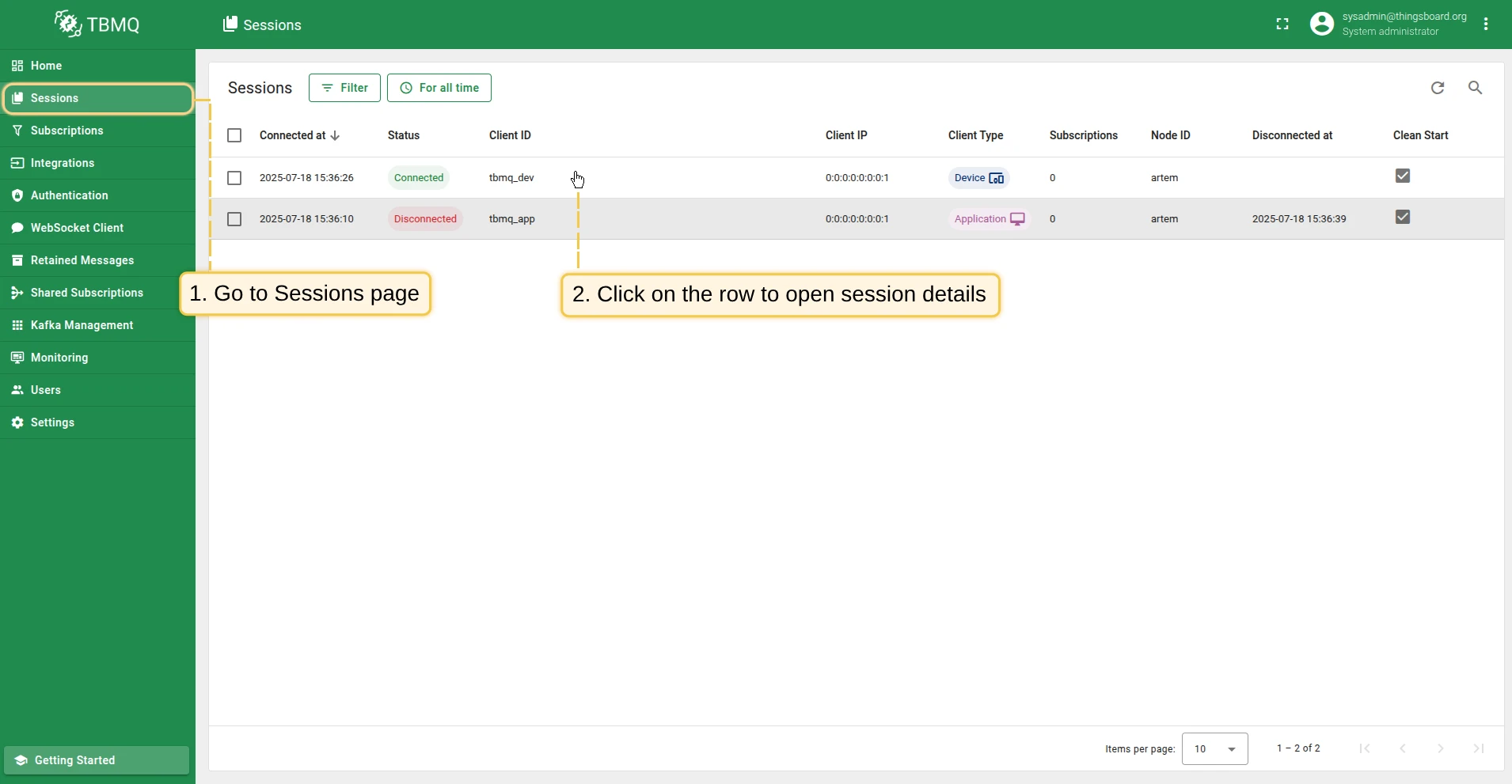

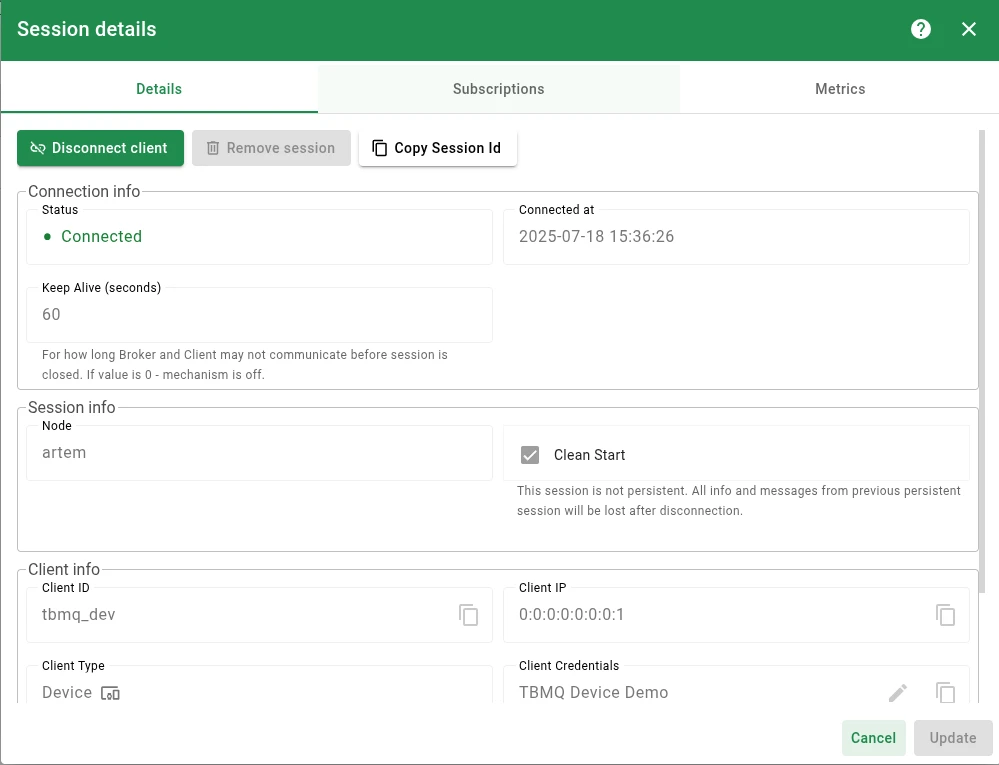

If you signed up for a demo account, log in to demo.tbmq.io and open the Sessions page to find the session your subscriber just created.

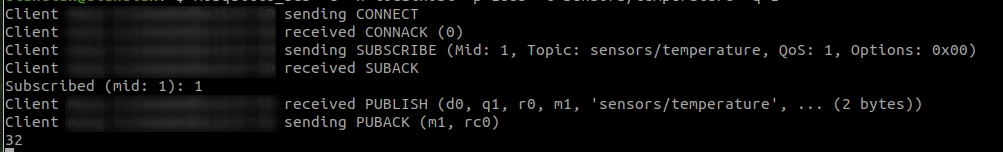

The subscriber prints the payload as soon as the publisher sends it:
